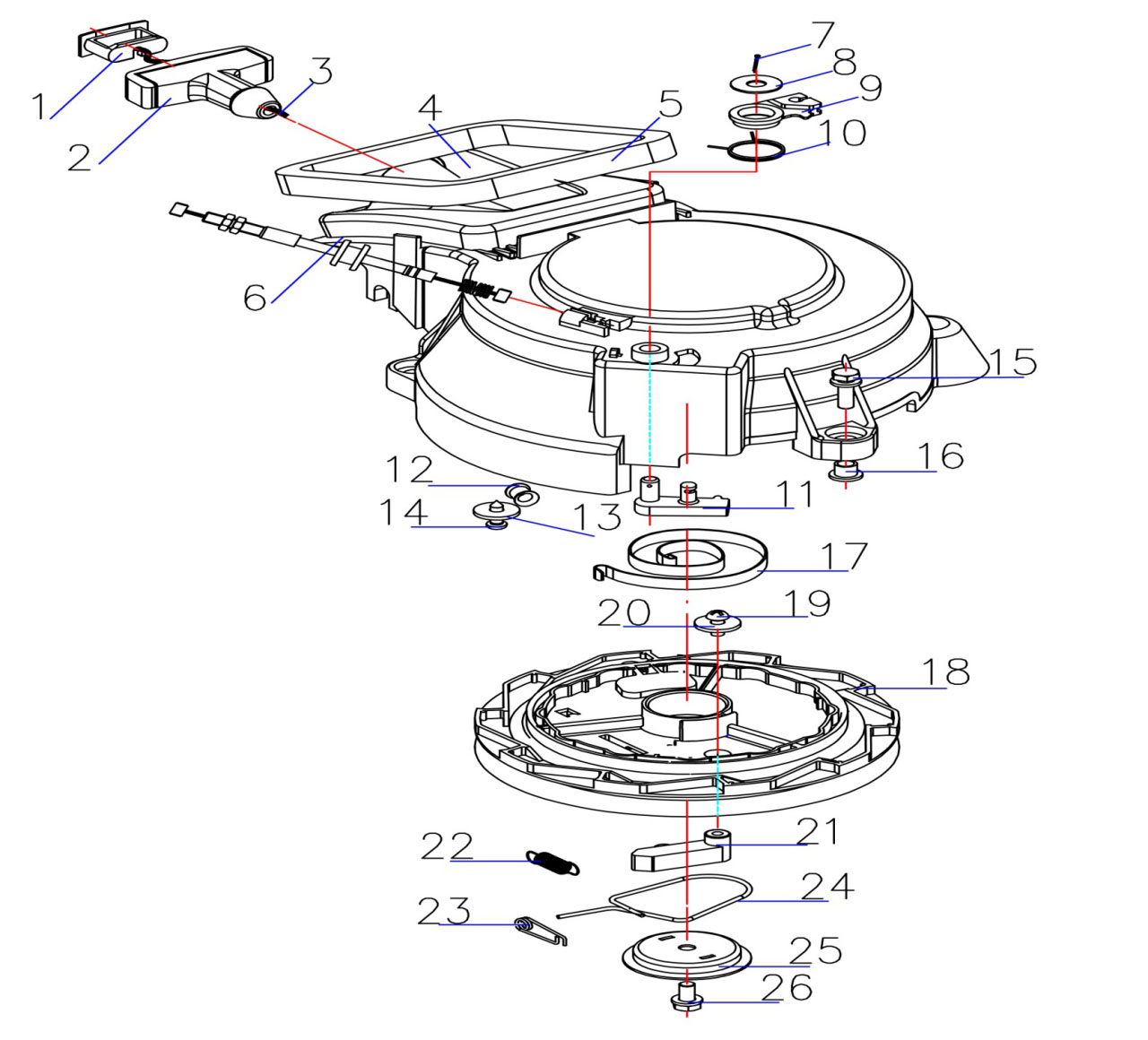

| 滄龍航跡 T40 啟動罩 | ||||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 | |
| C2070003 | T40-01.01.00.00 | 啟動罩總成 | ||||
| 1 | C3060706 | T40-01.01.21 | 手柄蓋 | 1 | 6F5-15779-02 | |
| 2 | C3060705 | T40-01.01.20.00 | 啟動手柄組件 | 1 | 689-15755-01 | |
| 3 | C3050705 | T40-01.01.19 | 手柄減震圈 | 1 | 697-15789-00 | |
| 4 | C3090703 | T40-01.01.23 | 啟動繩φ5.5X1800 | 1 | ||
| 5 | C3050704 | T40-01.01.18 | 橡膠減震圈 | 1 | 66T-15762-01 | |
| 6 | C3050706 | T40-01.01.24 | 啟動罩悶頭 | 1 | ||
| 7 | C3060704 | T40-01.01.17.00 | 啟動繩導向器組件 | 1 | 66T-15758-01 | |
| 8 | C4010209 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X35 | 2 | 97095-06035 | |
| 9 | C3020704 | T40-01.01.16 | 導向器帶肩墊管 | 2 | 90387-06M66 | |
| 10 | C4010404 | GB/T6170 | 六角螺母M6 | 2 | ||
| 11 | C3020701 | T40-01.01.08 | 啟動罩帶肩墊管 | 3 | 90387-08M51 | 90387?08M05 |
| 12 | C3050703 | T40-01.01.09 | 啟動罩橡膠減震圈 | 6 | 90385-12M04 | |
| 13 | C4010233 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X35 | 2 | ||
| 14 | C4010231 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X25 | 1 | ||
| 15 | C3060702 | T40-01.01.07 | 啟動罩外殼 | 1 | 66T-15711-00 | |
| 16 | C4010119 | GB/T5783 | 六角頭螺栓M6X40 | 1 | 6F5-15768-00 | |
| 17 | C4010506 | GB/T96 | 大平墊6 | 1 | 92995-06600 | |
| 18 | C3020703 | T40-01.01.15 | 轉軸墊管 | 1 | 6F5-15753-00 | |
| 19 | C3020702 | T40-01.01.14 | 啟動繩轉軸 | 1 | 65F-15752-00 | 6F5?15752?00 |
| 20 | C3080704 | T40-01.01.06 | 渦形彈簧 | 1 | 66T-15713-00 | |
| 21 | C3070501 | T20-01.01.23 | 壓板 | 1 | ||
| 23 | C4010404 | GB/T6170 | 六角螺母M6 | 1 | ||
| 24 | C3090702 | T40-01.01.13 | 制動鋼索 | 1 | 66T-15770-00 | |
| 25 | C3080705 | T40-01.01.11 | 制動器扭簧 | 1 | 66T-15734-00 | |
| 26 | C3060703 | T40-01.01.10 | 制動器 | 1 | 66T-15794-00 | |
| 27 | C3080706 | T40-01.01.12 | 鋼索拉簧 | 1 | 66T-15731-00 | |
| 28 | C4010805 | GB/T896 | 開口擋圈8 | 1 | ||
| 30 | C3060701 | T40-01.01.03 | 啟動輪 | 1 | 66T-15714-00 | |
| 31 | C3080703 | T40-01.01.05 | 回位彈簧 | 1 | 66T-15784-00 | |
| 32 | C3080701 | T40-01.01.02 | 壓板夾簧 | 1 | 66T-15705-00 | |
| 33 | C3080702 | T40-01.01.04 | 回位彈簧拉鉤 | 1 | 66T-15767-00 | |
| 34 | C3060707 | T40-01.01.22 | 驅動臂 | 1 | ||
| 35 | C3070701 | T40-01.01.01 | 啟動壓板 | 1 | 66T-15716-00 | |
| 36 | C4010204 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X16 | 1 | 63V-15768-00 | |

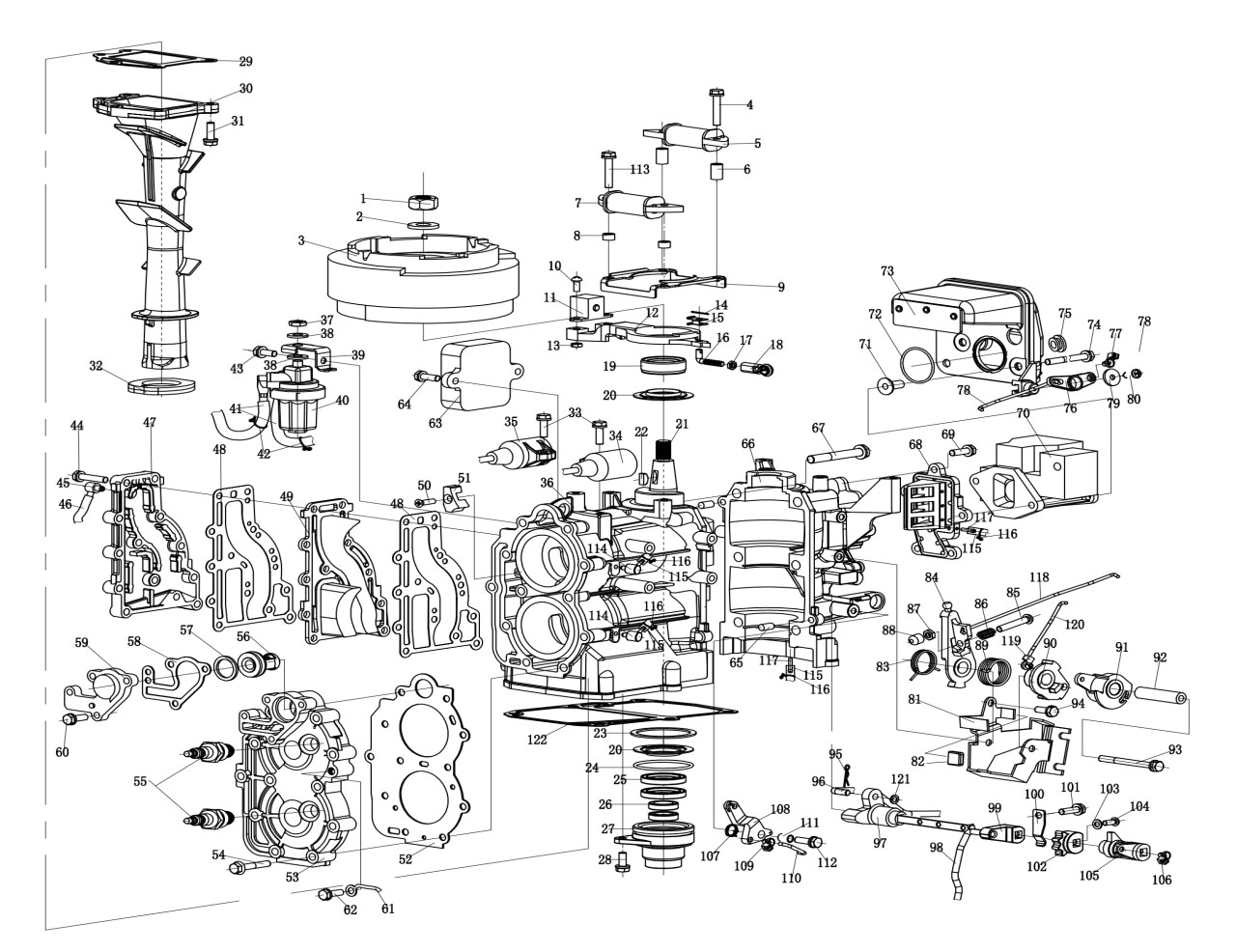

| 滄龍航跡 T40 發動機 | |||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 |
| C2070002 | T40 | 發動機總成 | 1 | ||
| 1 | C3010703 | T40-01.06.01.00 | 箱體組件 | 1 | 66T-15100-02-1S |
| 2 | C3020712 | T40-01.06.04 | 定位銷φ8X12 | 2 | 93608-12063 |
| 3 | 與箱體配套 | T40-01.06.05 | 箱蓋 | 1 | |
| 4 | C3020502 | T20-01.06.02 | 直角氣嘴 | 3 | |
| 5 | C3020504 | T20-01.06.03 | 直通氣嘴 | 1 | |
| 6 | C3080501 | T20-01.06.04 | 管夾7 | 6 | |
| 7 | C3050711 | T40-01.06.06 | 通氣管A3X7.5X250 | 1 | |
| 8 | C4010269 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件10X55-1.25 | 10 | |
| 9 | C3010705 | T40-01.06.11 | 啟動罩右支架 | 1 | 66T-15771-00-94 |
| 10 | C4010207 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X30 | 4 | |
| 11 | C3010704 | T40-01.06.08 | 啟動罩左支架 | 1 | 66T-15772-00-94 |
| 12 | C3070710 | T40-01.06.09 | 導線定位架 | 1 | |
| 13 | C3050713 | T40-01.06.10 | 導線定位圈 | 1 | |
| 14 | C4010204 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X16 | 1 | |
| 15 | C3040711 | T40-01.06.12.00 | 進氣閥組件 | 1 | 66T-13610-00 |
| 16 | C3010706 | T40-01.06.13 | 進氣歧管 | 1 | 66T-13641-02-1S |
| 17 | C4010209 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X35 | 8 | 97013-06035 |
| 18 | C3070706 | T40-01.04.08 | 油門鋼索支架 | 1 | 66T-14497-00 |
| 19 | C4010204 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X16 | 1 | 97095-06014 |
| 20 | C3060711 | T40-01.04.02 | 油門鋼索端輪 | 1 | 66T-41638-00 |
| 21 | C3080710 | T40-01.04.06 | 端輪扭簧 | 1 | 66T-42167-00 |
| 22 | C3060712 | T40-01.04.07 | 磁電機控制杠桿 | 1 | 66T-41631-01 |
| 23 | C4010328 | GB/T818 | 十字槽盤頭螺釘M6X35 | 1 | 97880-06035 |
| 24 | C3080709 | T40-01.04.04 | 調節螺釘壓縮彈簧 | 1 | 90501-10M84 |
| 25 | C4010404 | GB/T6170 | 六角螺母M6 | 1 | 95380-06700 |
| 26 | C3060416 | T15-01.04.07 | 螺紋蓋 | 1 | 688-44194-00 |
| 27 | C3080708 | T40-01.04.03 | 正時連桿 | 1 | 66T-41237-00 |
| 28 | C3020709 | T40-01.04.01 | 端輪襯套 | 1 | 90387-08M16 |
| 29 | C4010518 | GB/T5287 | 特大平墊8 | 1 | 90201-08M54 |
| 30 | C4010133 | GB/T5783 | 六角頭螺栓M8X45 | 1 | 97095-08045 |
| 31 | C4010404 | GB/T6170 | 六角螺母M6 | 1 | |
| 32 | C3070501 | T20-01.01.23 | 壓板 | 1 | |
| 33 | C4010202 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X12 | 1 | |
| 34 | 化油器自帶 | T40-01.02.07 | 化油器O型圈(化油器自帶) | 1 | |
| 35 | C3080707 | T40-01.02.04 | 化油器連桿 | 1 | 66T-41256-00 |
| 36 | C3040701 | T40-01.02.06.00 | 化油器組件 | 1 | 66T-14301-02 |
| 37 | C4010244 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X100 | 2 | 90119-08M03 |
| 38 | C3050707 | T40-01.02.05 | 進氣消音器O型圈 | 1 | 93210-54M54 |
| 39 | C3060709 | T40-01.02.03 | 阻風門搖臂 | 1 | 66T-41252-00 |
| 40 | C3060408 | T15-01.02.06 | 連桿接頭 | 1 | |
| 41 | C4010918 | GB/T879 | 彈性圓柱銷φ4X35 | 1 | 91690-40032 |
| 42 | C3060708 | T40-01.02.02.00 | 進氣消音器組件 | 1 | 66T-14440-00 |
| 43 | C3020705 | T40-01.02.01 | 進氣消音器墊管 | 2 | 90387-06M80 |
| 44 | C4010512 | GB/T97 | 平墊6 | 2 | 92995-06600 |
| 45 | C4010376 | GB/T818 | 十字槽盤頭螺釘M6X40 | 2 | 97885-06040 |

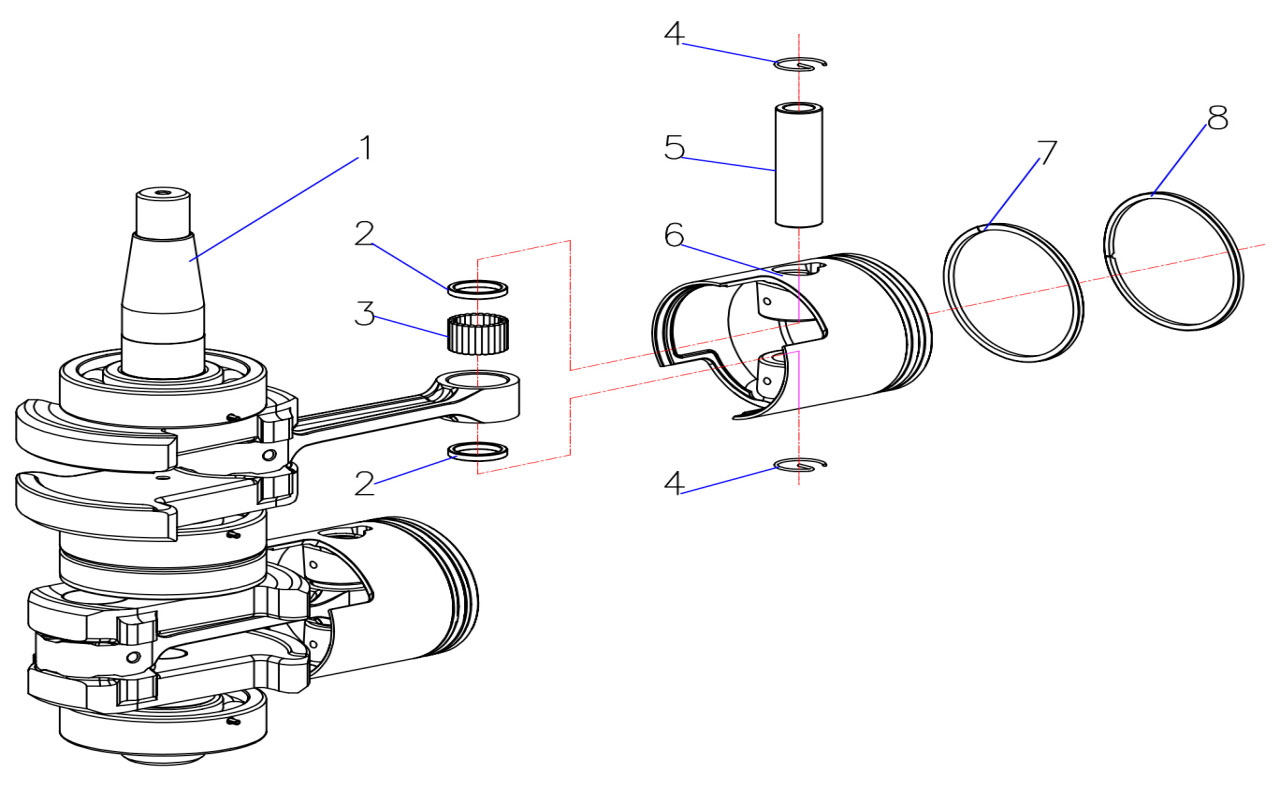

| 46 | C3040703 | T40-01.06.03.00 | 曲軸連桿組件 | 1 | 66T-11400-01 |
| 47 | C3040513 | T20-01.06.23 | 曲軸半圓鍵 | 1 | 90280-05015 |
| 48 | C3050709 | T40-01.03.18 | 磁電機座O型圈 | 1 | 93210-75M51 |
| 49 | C3050710 | T40-01.03.19 | 曲軸上油封 | 1 | 93102-35008 |
| 50 | C3010702 | T40-01.03.17 | 磁電機座 | 1 | 66T-85561-00 |
| 51 | C4010210 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X40 | 4 | 97095-06040 |
| 52 | C3030703 | T40-01.03.06.00 | 充電線圈組件 | 1 | 66T-85520-00 |
| 53 | C3030704 | T40-01.03.07.00 | 照明線圈組件 | 1 | 66T-85533-00 |
| 54 | C4010604 | GB/T93 | 彈墊6 | 6 | 97902-06125 |
| 55 | C4010326 | GB/T818 | 十字槽盤頭螺釘M6X25 | 4 | |
| 56 | C3030702 | T40-01.03.05.00 | 觸發器組件 | 1 | 66T-85533-00 |
| 57 | C3070703 | T40-01.03.04 | 磁電機壓板 | 1 | 66T-41611-00 |
| 58 | C4010303 | GB/T818 | 十字槽盤頭螺釘M4X6 | 4 | 97802-04006 |
| 59 | C3030701 | T40-01.03.03.00 | 飛輪組件 | 1 | 66T-85550-00 |
| 60 | C4010520 | GB/T97 | 平墊20 | 1 | 90201-21M18 |
| 61 | C3020706 | T40-01.03.02 | 飛輪螺母 | 1 | 90170-20137 |
| 62 | C3070702 | T40-01.03.01 | 啟動轂 | 1 | 66T-15762-01 |
| 63 | C4010201 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X10 | 4 | 97095-06010 |
| 64 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 2 | |
| 65 | C3030706 | T40-01.03.14.00 | 高壓包組件A | 1 | |
| 66 | C3020708 | T40-01.03.11 | 安裝架墊管 | 3 | 90387-06119 |
| 67 | C3010732 | T40-01.03.13 | 電器安裝架 | 1 | 66T-8554B-01-94 |
| 68 | C3050708 | T40-01.03.12 | 安裝架減震墊 | 3 | 6A0-82317-00 |
| 69 | C4010506 | GB/T96 | 大平墊6 | 3 | 90119-06M65 |
| 70 | C4010117 | GB/T5783 | 六角頭螺栓M6X30 | 3 | |
| 71 | C3030707 | T40-01.03.15.00 | 高壓包組件B | 1 | 66T-85570-00 |
| 72 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 2 | 97095-06025 |
| 73 | C3030705 | T40-01.03.10.00 | 點火控制器組件 | 1 | 66T-85540-00 |
| 74 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 2 | 90109-06M81 |
| 76 | C3060710 | T40-01.03.09 | 電器蓋 | 1 | 66T-81916-01 |
| 77 | C3020707 | T40-01.03.08 | 電器蓋墊管 | 1 | |
| 78 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 1 | |
| 79 | C3030710 | T40-01.03.21.00 | 線束組件 | 1 | |
| 80 | C3070712 | T40-01.06.31 | 發動機掛鉤 | 1 | |
| 81 | C4010230 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X20 | 2 | |
| 82 | C3070713 | T40-01.07.03 | 濾清器支架 | 1 | 648-24566-02 |
| 83 | C4010404 | GB/T6170 | 六角螺母M6 | 1 | 95380-08600 |
| 84 | C4010202 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X12 | 1 | 97013-06014 |
| 85 | C3060504 | T20-01.07.05.00 | 燃油濾清器組件 | 1 | 61N-24560-00 |
| 86 | C3080502 | T20-01.07.03 | 管夾9 | 6 | 90467-08004 |
| 87 | C3050719 | T40-01.07.02 | 濾清器進油管 | 1 | 90445-09M08 |
| 88 | C3090710 | T40-01.07.06 | 燃油泵密封墊 | 1 | 650-24431-A0 |
| 89 | C3040714 | T40-01.07.05.00 | 燃油泵組件 | 1 | 692-24410-00 |
| 90 | C4010210 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X40 | 2 | 97095-06040 |
| 91 | C3050720 | T40-01.07.04 | 出油管 | 2 | 90445-09086 |
| 92 | C3090706 | T40-01.06.22 | 排氣蓋密封墊 | 1 | 66T-41114-A0 |
| 93 | C3010708 | T40-01.06.23 | 排氣蓋 | 1 | 66T-41113-00-1S |
| 94 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 9 | 90119-06MA3 |
| 95 | C3020407 | T15-01.06.07 | 水管圓接頭 | 1 | 676-11372-00 |
| 96 | C3040713 | T40-01.06.30 | 機體陽極 | 1 | 676-11325-00 |
| 97 | C4010374 | GB/T819 | 十字槽沉頭螺釘M6X25 | 1 | 90141-06M00 |
| 98 | C3090709 | T40-01.06.29 | 氣缸墊 | 1 | 66T-11181-A2 |
| 99 | C3010711 | T40-01.06.28 | 氣缸蓋 | 1 | 66T-11111-01-1S |
| 100 | C3030708 | T40-01.03.16.00 | 溫控傳感器組件 | 1 | |
| 101 | C3090708 | T40-01.06.27 | 氣缸外蓋密封墊 | 1 | 66T-11193-A2 |
| 102 | C3010710 | T40-01.06.26 | 氣缸外蓋 | 1 | 66T-11191-00-1S |
| 103 | C4010268 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X70 | 11 | 90119-08MA5 |
| 104 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 4 | 90119-06MA3 |
| 105 | C3030508 | T20-01.03.16 | 火花塞BPR7HS-10 | 2 | 94702-00272 |
| 106 | C3040501 | T20-01.06.37 | 節溫器組件(55±5°) | 1 | 6E5-12411-02 |
| 107 | C3090707 | T40-01.06.25 | 節溫器蓋密封墊 | 1 | 676-12414-A1 |
| 108 | C3010709 | T40-01.06.24 | 節溫器蓋 | 1 | 676-12413-00-1S |
| 109 | C4010209 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X35 | 4 | 90119-06MA5 |
| 110 | C3040712 | T40-01.06.20 | 排水陽極 | 1 | 676-45251-00 |
| 111 | C4010205 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X20 | 1 | 92995-06600 |
| 112 | C3050711 | T40-01.06.06 | 通氣管A3X7.5X250 | 1 | |
| 113 | C3050712 | T40-01.06.07 | 通氣管B3X7.5X220 | 1 | |
| 114 | C3070711 | T40-01.06.15 | 曲軸下蓋板 | 1 | 66T-11565-00 |
| 115 | C3050715 | T40-01.06.16 | 曲軸下油封 | 2 | 93102-30M56 |
| 116 | C3050717 | T40-01.06.18 | 下油封殼體O型圈 | 1 | 93210-65M50 |
| 117 | C3050716 | T40-01.06.17 | 驅動軸上油封 | 2 | 93101-16001 |
| 118 | C3010707 | T40-01.06.19 | 下油封殼體 | 1 | 66T-15396-01-94 |
| 119 | C4010205 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X20 | 1 | 97095-06020 |
| 120 | C3090705 | T40-01.06.21 | 機體密封墊 | 1 | 66T-45113-A0 |
| 121 | C3070501 | T20-01.01.23 | 壓板 | 1 | |
| 122 | C3020734 | T40-01.06.32 | 直角氣嘴 | 2 | |
| 123 | C4010327 | GB/T818 | 十字槽盤頭螺釘M6X30 | 2 | |

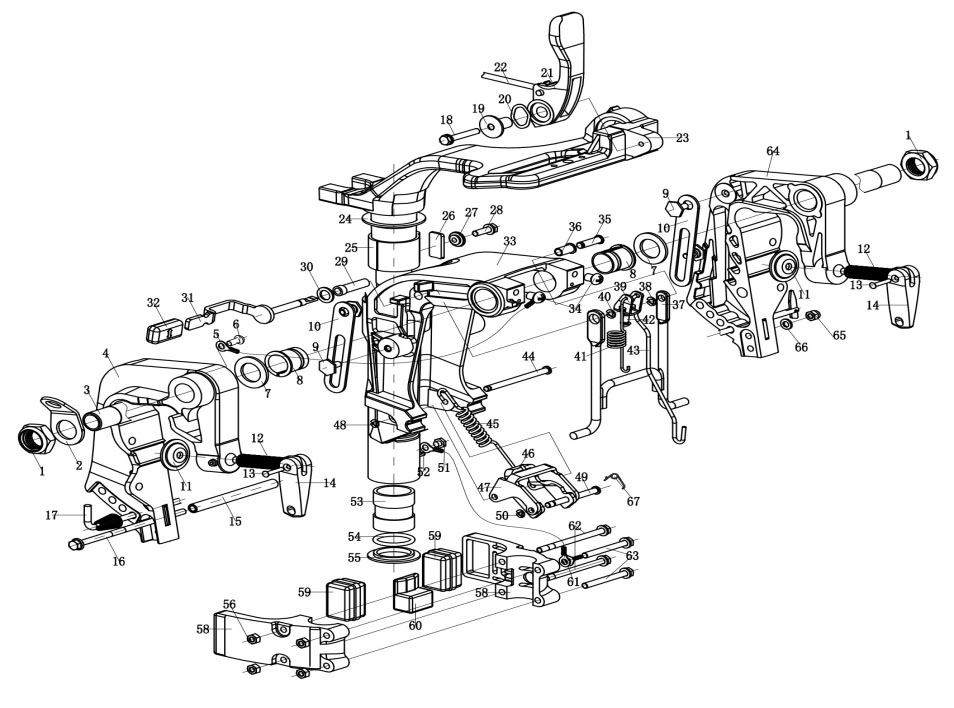

| 滄龍航跡 T40 操舵托架 | |||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 |
| 1 | C3010718 | T40-03.04.04 | 操舵支架 | 1 | 65W-42511-00-4D |
| 2 | C207C3010717 | T40-03.04.01 | 操舵托架（噴漆） | 1 | 65W-42121-01-4D |
| 3 | C4010270 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M10X35-1.25 | 2 | |
| 4 | C3050729 | T40-03.04.02 | 操舵托架橡膠套 | 1 | |
| 5 | C4010212 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X50 | 1 | 97595-06550 |
| 6 | C3020710 | T40-01.05.10 | 手柄襯套 | 1 | 66T-42123-00 |
| 7 | C3070708 | T40-01.05.11 | 手柄波墊 | 1 | 90206-12052 |
| 8 | C3070709 | T40-01.05.12 | 手柄墊圈 | 1 | 90201-12M07 |
| 9 | C3060717 | T40-01.05.09 | 變檔手柄 | 1 | 66T-44111-02 |
| 10 | C3020711 | T40-01.05.13 | 手柄帶肩墊管 | 1 | 90387-06M86 |
| 11 | C4010512 | GB/T97 | 平墊6 | 1 | |
| 12 | C4010413 | GB/T889 | 非金屬嵌件六角鎖緊螺母M6 | 1 | |
| 13 | C3070723 | T40-03.04.05 | 操舵支架上襯圈 | 1 | 90209-52M00 |
| 14 | C3060726 | T40-03.04.06 | 鎖緊圈 | 1 | 90386-52M02 |
| 15 | C3070724 | T40-03.04.07 | 鎖緊圈摩擦片 | 1 | 648-42528-00 |
| 16 | C3050730 | T40-03.04.08 | 鎖緊螺栓密封圈 | 1 | 65W-43373-00 |
| 17 | C4010231 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X25 | 1 | 90105-08M76 |
| 18 | C3020506 | T20-03.00.01 | 雙頭螺柱螺母 | 2 | 90185-22043 |
| 19 | C3070414 | T15-03.00.02 | 孔板 | 1 | 6J8-43113-01 |
| 20 | C3020522 | T20-03.00.02 | 雙頭螺柱 | 1 | 63D-43131-01 |
| 21 | C3070714 | T40-03.00.02 | 托架阻尼墊 | 2 | 90201-22M03 |
| 22 | C3060721 | T40-03.00.01 | 夾緊襯圈 | 2 | 90386-22M15 |
| 23 | C3010715 | T40-03.02.01 | 旋轉托架 | 1 | 65W-43311-00-4D |
| 24 | C3050502 | T20-03.02.18 | 起翹手柄橡膠套 | 1 | 682-43318-01 |
| 25 | C3070717 | T40-03.02.02.00 | 起翹手柄組件 | 1 | 65W-43630-11 |
| 26 | C3060724 | T40-03.02.03 | 手柄軸減磨套 | 1 | |
| 27 | C4010805 | GB/T896 | 開口擋圈8 | 2 | 93430-10M00 |
| 28 | C4010514 | GB/T97 | 平墊10 | 1 | |
| 29 | C3020717 | T40-03.02.04 | 手柄套圈 | 1 | 90386-10M99 |
| 30 | C3070718 | T40-03.02.05 | 角度支撐架 | 1 | 66T-43350-02 |
| 31 | C3080717 | T40-03.02.08 | 角度定位鎖桿 | 1 | 65W-43616-00 |
| 32 | C3070719 | T40-03.02.07 | 角度定位件 | 1 | 66T-43631-11 |
| 33 | C4010314 | GB/T818 | 十字槽盤頭螺釘M5X10 | 1 | 90157-05014 |
| 34 | C3080718 | T40-03.02.10 | 起翹拉簧 | 1 | 90506-20M37 |
| 35 | C3060724 | T40-03.02.03 | 手柄軸減磨套 | 1 | |
| 36 | C3020718 | T40-03.02.09 | 支撐架軸銷 | 1 | 90249-10M31 |
| 37 | C3020534 | JB/T7940.1 | 直通式壓注油杯M6 | 3 | |
| 38 | C3090701 | T40-00.00.04 | 鋼絲連接線 | 1 | 66T-82127-00 |
| 39 | C3050731 | T40-03.04.10 | 操舵支架O型圈 | 1 | 93210-43MJ0 |
| 40 | C3060727 | T40-03.04.09 | 操舵支架襯套 | 1 | 90386-44M03 |
| 41 | C3060728 | T40-03.04.11 | 操舵支架下襯圈 | 1 | 90386-44M99 |
| 42 | C4010709 | GB/T91 | 開口銷φ2X12 | 4 | 91490-20012 |
| 43 | C3020720 | T40-03.02.15 | 外支架固定軸 | 1 | |
| 44 | C3020721 | T40-03.02.16 | 固定軸襯管 | 1 | 90249-07M32 |
| 45 | C3070721 | T40-03.02.13 | 角度定位外支架左 | 1 | 65W-43614-01 |
| 46 | C3070720 | T40-03.02.11 | 角度定位內支架 | 1 | 65W-43613-00 |
| 47 | C3080716 | T40-03.02.06 | 角度定位拉簧 | 2 | 90506-30M00 |
| 48 | C3070722 | T40-03.02.14 | 角度定位外支架右 | 1 | 65W-43615-01 |
| 49 | C3020719 | T40-03.02.12 | 內支架固定軸 | 1 | 90101-08M76 |
| 50 | C3010714 | T40-03.01.01 | 左托架 | 1 | 66T-43112-01-4D |
| 51 | C4010414 | GB/T889 | 非金屬嵌件六角鎖緊螺母M8 | 2 | 90185-08057 |
| 52 | C4010513 | GB/T97 | 平墊8 | 2 | |
| 53 | C3060725 | T40-03.03.07 | 定位軸手柄 | 1 | 65W-43192-00 |
| 54 | C4010910 | GB/T879 | 彈性圓柱銷φ3X18 | 1 | 91690-30018 |
| 55 | C3080719 | T40-03.03.06 | 定位軸彈簧 | 1 | |
| 56 | C3020724 | T40-03.03.05 | 定位軸 | 1 | 65W-43191-00 |
| 57 | C3070716 | T40-03.01.05 | 制動板 | 2 | 66T-43627-00 |
| 58 | C3060722 | T40-03.01.06 | 制動板阻尼墊 | 2 | 90202-12031 |
| 59 | C3070715 | T40-03.01.04 | 固定螺栓波墊 | 2 | |
| 60 | C3020715 | T40-03.01.03 | 制動板固定螺栓 | 2 | 90109-08M90 |
| 61 | C3020716 | T40-03.01.07 | 制動板銷（短） | 1 | 90249-12M34 |
| 62 | C3060723 | T40-03.01.08 | 開口襯套（長） | 2 | 90386-12M98 |
| 63 | C4010807 | GB/T896 | 開口擋圈10 | 1 | |
| 64 | C3020722 | T40-03.03.02 | 制動板銷（長） | 1 | 90249-12M39 |
| 65 | C4010807 | GB/T896 | 開口擋圈10 | 1 | |
| 66 | C3020723 | T40-03.03.04 | 制動板銷墊管 | 1 | |
| 67 | C3060601 | T40-03.03.03 | 開口襯套(短) | 1 | 90386-12MA0 |
| 68 | C3070503 | T20-03.01.04 | 夾緊盤 | 2 | 648-43114-01 |
| 69 | C3020413 | T15-03.01.02 | 艉板夾緊螺栓 | 2 | 90149-14M12 |
| 70 | C4010916 | GB/T1015 | 半沉頭半空心鉚釘φ4X18 | 2 | 90243-04007 |
| 71 | C3010501 | T20-03.01.02 | 鎖緊手柄 | 2 | 663-43118-01-4D |
| 72 | C3080714 | T40-03.00.05 | 角度插銷桿 | 1 | 90101-08M28 |
| 73 | C3080715 | T40-03.00.06 | 塔形彈簧 | 1 | 90502-10M06 |
| 74 | C4010414 | GB/T889 | 非金屬嵌件六角鎖緊螺母M8 | 2 | 90185-08057 |
| 75 | C4010513 | GB/T97 | 平墊8 | 1 | |
| 76 | C3020714 | T40-03.00.04 | 托架鎖緊套管 | 1 | 90387-08M29 |
| 77 | C4010139 | T40-03.00.03 | 六角頭螺栓M8X255 | 1 | 90101-08M76 |
| 78 | C3010716 | T40-03.03.01 | 右托架 | 1 | 66T-43111-01-4D |
| 79 | C4010514 | GB/T97 | 平墊10 | 2 | |

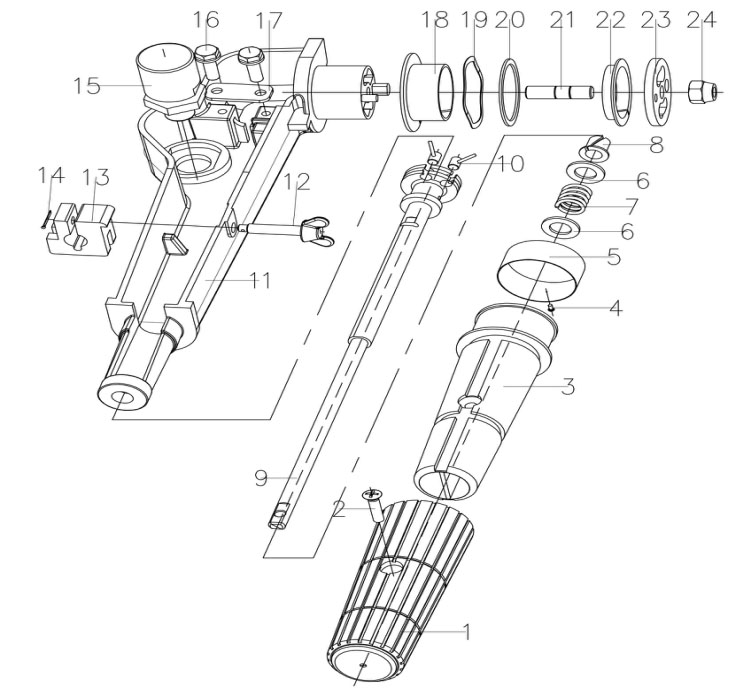

| 滄龍航跡 T40 操舵手柄 | |||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 |
| C2070006 | T40-04.00.00.00 | 操舵手柄總成 | |||
| 1 | C3050503 | T20-04.00.01 | 油門手柄橡膠套 | 1 | 6F6-42177-A0 |
| 2 | C3060509 | T20-04.00.02 | 油門手柄 | 1 | 664-42119-00 |
| 3 | C4010357 | GB/T820 | 十字槽半沉頭螺釘M5X25 | 1 | 90149-05M13 |
| 4 | C3090502 | T20-04.00.03 | 油門標牌 | 1 | 6G1-42137-10 |
| 5 | C4010344 | GB/T6560 | 十字槽盤頭自攻螺釘ST2.2X4.5 | 1 | 90269-02M09 |
| 6 | C4010514 | GB/T97 | 平墊10 | 2 | 92903-10600 |
| 7 | C3080504 | T20-04.00.04 | 油門手柄壓縮彈簧 | 1 | 90501-23215 |
| 8 | C3060510 | T20-04.00.05 | 尼龍襯套 | 1 | 90386-08032 |
| 9 | C3060430 | T40-04.00.03.00 | 節氣門桿組件 | 1 | 65W-42138-00 |
| 10 | C3090719 | T40-04.00.06 | 油門鋼索組件 | 2 | 66T-26301-00 |
| 11 | C3090718 | T40-04.00.02 | 阻力調整旋鈕 | 1 | 65W-42125-00 |
| 12 | C3060430 | T15-04.00.03 | 鎖緊塊 | 1 | 6G1-42126-00 |
| 13 | C4010702 | GB/T91 | 開口銷φ1.2X12 | 1 | 91490-20010 |
| 14 | C3060430 | T40-04.00.05 | 急停開關組件 | 1 | 66T-82575-01 |
| 15 | C207C3010719 | T40-04.00.01 | 操舵手柄（噴漆） | 1 | 65W-42101-01-4D |
| 16 | C3070725 | T40-04.00.04 | 節氣門桿壓板 | 1 | 65W-42159-00 |
| 17 | C4010205 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X20 | 2 | |
| 18 | C3020726 | T40-04.00.13 | 雙頭螺柱M10X1.25 | 1 | |
| 19 | C3060730 | T40-04.00.07 | 手柄尼龍襯套（長） | 1 | 90386-440MA0 |
| 20 | C3070726 | T40-04.00.08 | 墊圈 | 2 | 90201-43M00 |
| 21 | C3070727 | T40-04.00.09 | 波墊 | 2 | 90206-43M22 |
| 22 | C3060731 | T40-04.00.10 | 尼龍減磨墊 | 1 | 90202-43M57 |
| 23 | C3060732 | T40-04.00.11 | 手柄尼龍襯套（短） | 1 | 90386-40M99 |
| 24 | C3070728 | T40-04.00.12 | 操舵手柄壓板 | 1 | 65W-42131-01 |
| 25 | C4010415 | GB/T889 | 非金屬嵌件六角鎖緊螺母M10 | 1 | |

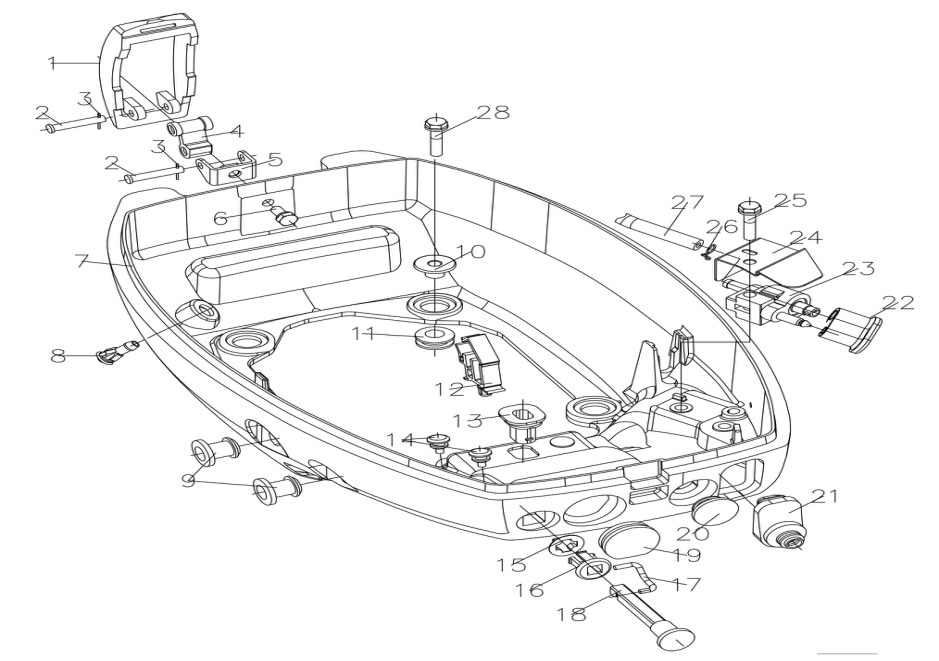

| 滄龍航跡 T40 底座 | ||||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 | |
| C2070007 | T40-02.00.00.00 | 底座總成 | 1 | |||
| 1 | C3060720 | T40-02.00.15 | 鎖緊手柄 | 1 | ||
| 2 | C3060505 | T20-02.00.11 | 鎖緊手柄連接件 | 2 | ||
| 3 | C3060505 | T20-02.00.11 | 鎖緊手柄連接件 | 1 | ||
| 4 | C4010702 | GB/T91 | 開口銷φ1.2X12 | 2 | ||
| 5 | C3070502 | T20-02.00.09 | 鎖緊手柄支架 | 1 | ||
| 6 | C4010202 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X12 | 1 | ||
| 7 | C207C3010712 | T40-02.00.01 | 底座（噴漆） | 1 | ||
| 8 | C3050725 | T40-02.00.08 | 橡膠出水管 | 1 | ||
| 9 | C3060421 | T15-02.00.10 | 水嘴 | 1 | 6E5-44391-00 | |
| 10 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 2 | 90109-06M81 | |
| 11 | C207C3010713 | T40-02.00.02 | 底座蓋板（噴漆） | 1 | 66T-42738-00-5B | |
| 12 | C3050728 | T40-02.00.13 | 橡膠減震圈 | 1 | 66T-42716-00 | |
| 13 | C3060719 | T40-02.00.14 | 裝飾罩 | 1 | 66T-42741-00 | |
| 14 | C4010204 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X16 | 2 | 97095-06016 | |
| 15 | C3020501 | T20-06.00.46 | 柱狀螺母 | 1 | 61N-44146-00 | |
| 16 | C3050721 | T40-02.00.03 | 方形橡膠悶頭 | 1 | 66T-42725-00 | 66T-42725-30 |
| 17 | C3050719 | T40-01.07.02 | 濾清器進油管 | 1 | 90445-09M08 | |
| 18 | C3080502 | T20-01.07.03 | 管夾9 | 1 | 90467-08004 | |
| 19 | C3050718 | T40-01.07.01 | 燃油插頭橡膠套 | 1 | 66T-24329-00 | |
| 20 | C4010207 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X30 | 1 | 6H4-41271-01 | |
| 21 | C3090501 | T20-01.07.01.00 | 燃油管插頭組件 | 1 | 6G1-24304-02 | |
| 22 | C3050501 | T20-01.07.02 | 燃油管插頭護套 | 1 | ||
| 23 | C3060420 | T15-02.00.07 | 阻風門拉桿 | 1 | 6H4-41271-01 | |
| 24 | C3060419 | T15-02.00.06 | 阻風門拉桿護套 | 1 | 689-41273-00 | |
| 25 | C3050415 | T15-02.00.05 | 拉桿護套橡膠墊 | 1 | 6J8-41274-00 | |
| 26 | C3080713 | T40-02.00.05 | 阻風門搖臂連桿 | 1 | 66T-41257-00 | |
| 27 | C3050723 | T40-02.00.06 | 檔位連桿減震圈 | 1 | 65W-42726-00 | |
| 28 | C3050724 | T40-02.00.07 | 油門鋼索護套 | 1 | 65W-26326-00 | |
| 29 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 2 | ||
| 30 | C3060713 | T40-01.05.01.00 | 杠桿托架組件 | 1 | 6F5-41662-00 | |
| 31 | C3080503 | T20-01.04.05 | R型銷 | 1 | 90468-18008 | |
| 32 | C4010512 | GB/T97 | 平墊6 | 1 | ||
| 33 | C3080711 | T40-01.05.08 | 變檔手柄連桿 | 1 | 66T-44124-00 | |
| 34 | C4010204 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X16 | 1 | ||
| 35 | C3070707 | T40-01.05.07 | 限位彈簧板 | 1 | 682-44116-01 | |
| 36 | C4010702 | GB/T91 | 開口銷φ1.2X12 | 1 | 91490-16012 | |
| 37 | C4010512 | GB/T97 | 平墊6 | 1 | ||
| 38 | C3080712 | T40-01.05.04 | 上變檔連桿 | 1 | 66T-44143-00 | 66T?44143?10 |
| 39 | C3060714 | T40-01.05.03.00 | 變檔杠桿組件 | 1 | 66T-44121-00 | |
| 40 | C3060715 | T40-01.05.05 | 油門鋼索端套 | 1 | 66M-44122-00 | |
| 41 | C4010911 | GB/T879 | 彈性圓柱銷φ3X20 | 2 | 90254-03M05 | |
| 42 | C4010206 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X25 | 2 | ||
| 43 | C3060713 | T40-01.05.01.00 | 杠桿托架組件 | 1 | ||
| 44 | C3060716 | T40-01.05.06 | 變檔搖臂 | 1 | 66T-44125-01 | |
| 45 | C4010117 | GB/T5783 | 六角頭螺栓M6X30 | 4 | 90119-06M61 | |
| 46 | C4010517 | GB/T5287 | 特大平墊6 | 4 | ||
| 47 | C3050726 | T40-02.00.10 | 橡膠減震墊 | 4 | 90480-09M21 | |
| 48 | C3020713 | T40-02.00.11 | 減震墊襯管 | 4 | 90387-06035 | |
| 49 | C4010204 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M6X16 | 2 | ||
| 50 | C3060718 | T40-02.00.09 | 螺紋塞 | 1 | ||
| 51 | C3050727 | T40-02.00.12 | 底座下橡膠悶頭 | 1 | 6H4-42726-00 | |
| 52 | C3060422 | T15-02.00.15 | 油門鋼索固定夾 | 1 | 90465-25M57 | |
| 53 | C3050722 | T40-02.00.04 | 變檔連桿橡膠護套 | 1 | 676-42727-00 | |
| 滄龍航跡 T40 曲軸 | |||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 |
| 1 | C3040703 | T40-01.06.03.00 | 曲軸連桿組件 | 1 | 66T-11400-01 |
| 2 | C3040708 | T40-01.06.03.06 | 活塞銷卡簧 | 4 | 663-11634-00 |
| 3 | C3040705 | T40-01.06.03.03 | 活塞銷 | 2 | 6F5-11633-00 |
| 4 | C3040707 | T40-01.06.03.05 | 滾針蓋板 | 4 | 90201-20417 |
| 5 | C3040706 | T40-01.06.03.04 | 密排滾針 | 56 | 93603-21111 |
| 6 | C3040704 | T40-01.06.03.02 | 活塞 | 2 | 66T-11631-01-93 |
| 7 | C3040709 | T40-01.06.03.07 | 主氣環 | 2 | 66T-11603-00 |
| 8 | C3040710 | T40-01.06.03.08 | 副氣環 | 2 | 66T-11603-00 |

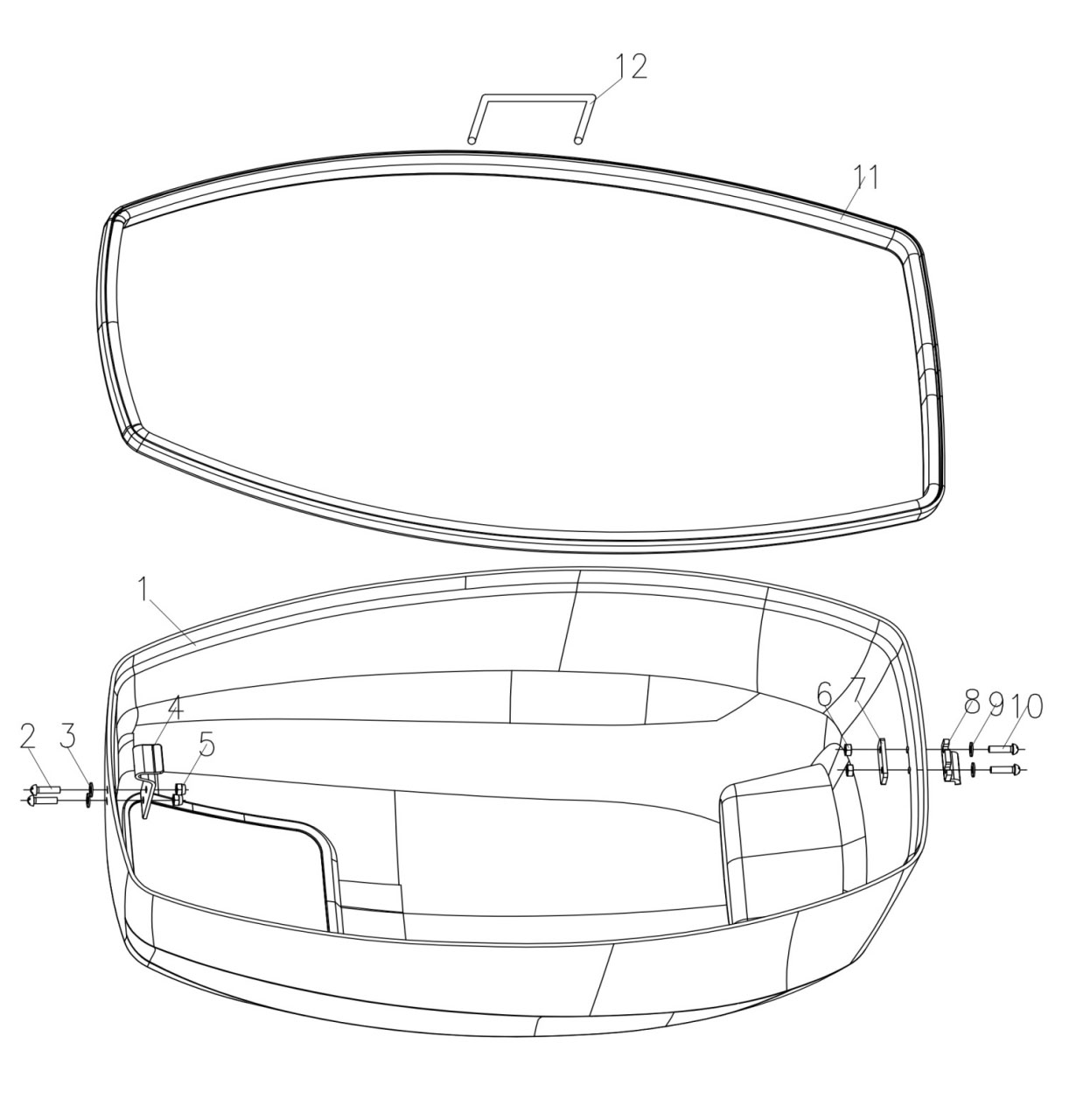

| 滄龍航跡 T40 頂罩 | ||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 |
| C2070011 | T40 | 頂罩總成 | 1 | |
| 1 | C207C3010738 | T40-07.00.01 | 頂罩(噴漆) | 1 |
| 2 | C4010306 | GB/T818 | 十字槽盤頭螺釘M4X16 | 3 |
| 3 | C4010510 | GB/T97 | 平墊4 | 2 |
| 4 | C3070504 | T20-07.00.05 | 后鎖緊鉤 | 1 |
| 5 | C3070505 | T20-07.00.06 | 后鎖緊鉤襯板 | 1 |
| 6 | C4010411 | GB/T889 | 非金屬嵌件六角鎖緊螺母M4 | 5 |
| 7 | C3070739 | T40-07.00.03 | 前鎖緊鉤 | 1 |
| 8 | C4010510 | GB/T97 | 平墊4 | 3 |
| 9 | C4010304 | GB/T818 | 十字槽盤頭螺釘M4X12 | 2 |
| 10 | C3060739 | T40-07.00.04 | 進氣口蓋 | 1 |
| 11 | C4010349 | GB/T845 | 十字槽盤頭自攻螺釘ST4.8X16 | 4 |
| 12 | C3050748 | T40-07.00.02 | 橡膠密封條 | 1 |
| 13 | T20-07.00.03 | 裝幁釘 | 25 | |

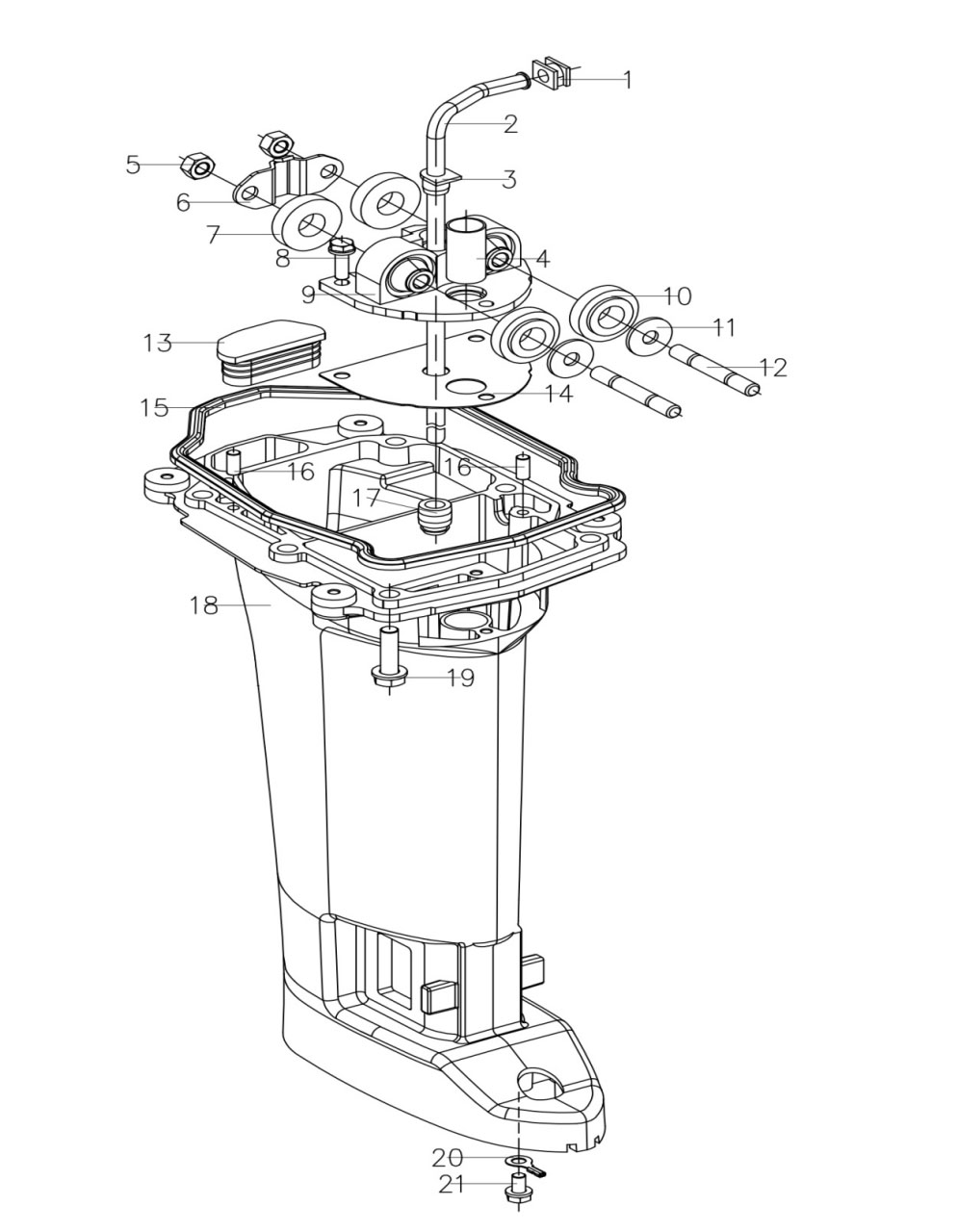

| 滄龍航跡 T40 水上 | ||||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 | |
| C2070008 | T40-05.00.00.00-L | 水上總成（長） | 1 | |||
| 1 | C3020727 | T40-05.00.02 | 減震器螺栓 | 2 | 90101-08M86 | |
| 2 | C3070729 | T40-05.00.03 | 減震器壓板 | 1 | 66T-44526-00 | |
| 3 | C4010232 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X30 | 3 | 97075-08030 | |
| 4 | C3010721 | T40-05.00.04.00 | 雙孔減震器組件 | 1 | 66T-44514-00-4D | |
| 5 | C4010513 | GB/T97 | 平墊8 | 2 | 92995-08200 | |
| 6 | C4010406 | GB/T6170 | 六角螺母M8 | 2 | 90185-08045 | |
| 7 | C4010232 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X30 | 2 | 90119-08M79 | |
| 8 | C3020503 | T20-02.00.13 | 定位銷φ6X12 | 2 | 93606-12019 | |
| 9 | C3010720 | T40-05.00.01 | 機體底座 | 1 | 66T-41137-00-5B | |
| 10 | C4010232 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X30 | 2 | ||
| 11 | C3090723 | T40-05.00.14 | 排氣管密封墊 | 1 | 66T-41137-00-5B | |
| 12 | C3060733 | T40-05.00.10 | 水管襯圈 | 1 | 676--42727-00 | |
| 13 | C3050733 | T40-05.00.11 | 水管上密封圈 | 1 | 90202-12060 | |
| 14 | C3010724 | T40-05.00.15 | 排氣管 | 1 | 66T-41131-00-5B | |
| 15 | C3090721 | T40-05.00.12-L | 水管（長） | 1 | 66T-44361-00 | |
| 16 | C4010235 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X45 | 3 | 97075-08030 | |
| 17 | C4010232 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X30 | 2 | 97575-08545 | |
| 18 | C3050734 | T40-05.00.13 | 水管密封圈 | 1 | 663-44367-00 | |
| 19 | C3090720 | T40-05.00.05 | 水上殼體密封墊 | 1 | ||
| 20 | C207C3010723 | T40-05.00.06-L | 水上殼體（長）（噴漆） | 1 | 66T-45111-00-4D | |
| 21 | C3020503 | T20-02.00.13 | 定位銷φ6X12 | 2 | ||
| 22 | C4010241 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X80 | 6 | ||
| 23 | C3040716 | T40-05.00.09 | 陽極堵塞 | 1 | 63D-45155-00 | |
| 24 | C3050732 | T40-05.00.07 | 水上殼體橡膠套 | 1 | 66T-44526-00 | |
| 25 | C3040715 | T40-05.00.08 | 水上殼體定位套 | 1 | ||
| 26 | C4010811 | GB/T893 | 孔用彈性擋圈30 | 1 | 97075-08030 | 93420?30042 |
| 27 | C3090701 | T40-00.00.04 | 鋼絲連接線 | 2 | 66T-82127-10 | |
| 28 | C4010322 | GB/T818 | 十字槽盤頭螺釘M6X10 | 1 | ||
| 30 | C4010415 | GB/T889 | 非金屬嵌件六角鎖緊螺母M10 | 4 | 90179-10M33 | |
| 31 | C4010514 | GB/T97 | 平墊10 | 4 | ||
| 32 | C3010701 | T40-00.00.01 | 減震塊外殼 | 2 | 65W-44551-00-4D | |
| 33 | C3050701 | T40-00.00.02 | 減震塊A | 2 | 65W-44555-10 | |
| 34 | C3050702 | T40-00.00.03 | 減震塊B | 1 | 66T-44575-00 | |
| 35 | C4010136 | GB/T5787 | 六角法蘭面螺栓M10X70 | 2 | 90119-10M04 | |
| 36 | C4010137 | GB/T5787 | 六角法蘭面螺栓M10X100 | 2 | 97075-10070 | |

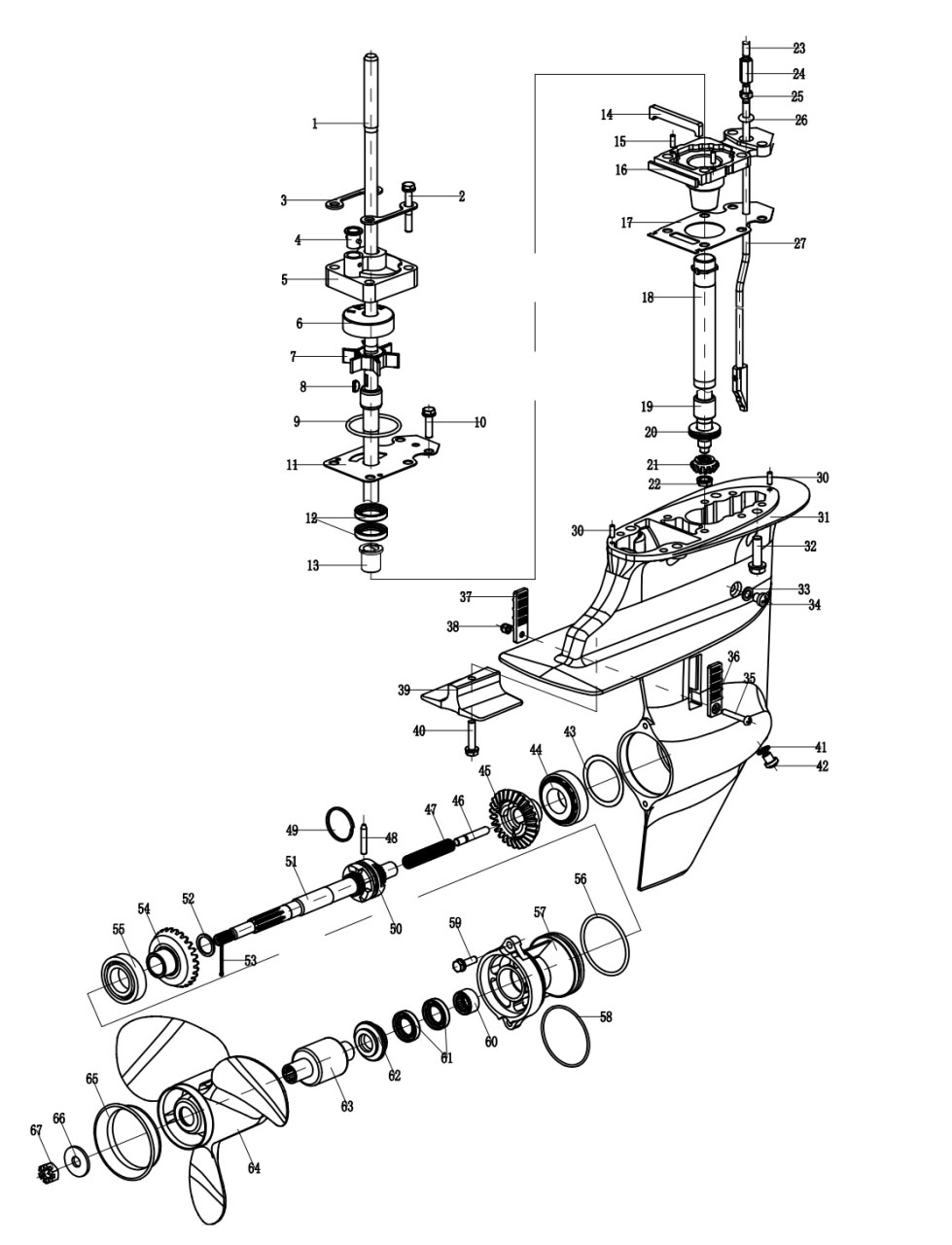

| 滄龍航跡 T40 水下 | ||||||
| 序號 | 物料代碼 | 配件編碼 | 配件名稱 | 數量 | 通用型號 | |
| C2070004 | T40-06.00.00.00-L | 水下總成（長） | ||||
| 1 | C207C3010727 | T40-06.00.25 | 水下殼體（噴漆） | 1 | 66T-45311-01-4D | |
| 2 | C3040724 | T40-06.00.30 | 航向調整片 | 1 | 664-45371-01 | |
| 3 | C4010231 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X25 | 1 | ||
| 4 | C3070734 | T40-06.00.31 | 正檔齒輪填隙片0.15 | 2 | 663-45567-01 | |
| 5 | C3040723 | GB/T297 | 圓錐滾子軸承322/32 | 1 | 93332-00003 | |
| 6 | C3040725 | T40-06.00.32 | 正檔齒輪 | 1 | 66T-45560-01 | |
| 7 | C3020730 | T40-06.00.33 | 變檔柱塞 | 1 | 66T-45635-00 | |
| 8 | C3080720 | T40-06.00.34 | 離合器簧環 | 1 | 663-45633-00 | |
| 9 | C3020731 | T40-06.00.36 | 離合器銷 | 1 | 90250-06023 | |
| 10 | C3040726 | T40-06.00.35 | 離合器 | 1 | 66T-45631-00 | |
| 11 | C3080721 | T40-06.00.37 | 變檔柱塞壓縮彈簧 | 1 | 90501-15M01 | |
| 12 | C3040727 | T40-06.00.38 | 螺旋槳軸 | 1 | 66T-45611-00 | |
| 13 | C4010715 | GB/T91 | 開口銷φ2.5X25 | 1 | ||
| 14 | C3070735 | T40-06.00.39 | 倒檔齒輪墊圈 | 1 | 90201-22429 | |
| 15 | C3040728 | T40-06.00.40 | 倒檔齒輪 | 1 | 66T-45571-00 | |
| 16 | C3070736 | T40-06.00.41 | 倒檔齒輪填隙片0.15 | 1 | 63D-45577-00 | |
| 17 | C3040729 | GB/T296 | 深溝球軸承6007C4 | 1 | 93306-001U1 | |
| 18 | C3010729 | T40-06.00.42 | 水下殼體蓋 | 1 | 63D-45361-02-4D | |
| 19 | C3050745 | T40-06.00.43 | 殼體蓋前O型圈(粗) | 1 | 93210-74MG5 | |
| 20 | C3050746 | T40-06.00.44 | 殼體蓋后O型圈(細) | 2 | 93210-74MG5 | |
| 21 | C4010231 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X25 | 2 | 90105-08M61 | |
| 22 | C3040730 | T40-06.00.45 | 滾針軸承HK2220 | 1 | 93317-22204 | |
| 23 | C3050739 | T40-06.00.11 | 水泵油封22X36X7 | 2 | 93101-22M00 | |
| 24 | C3020732 | T40-06.00.46 | 螺旋槳墊塊 | 1 | 663-45987-02 | |
| 25 | C3010730 | T40-06.00.47 | 螺旋槳11 1/8X13 | 1 | 69W-45945-00-EL | |
| 26 | C3050747 | T40-06.04.00 | 內花鍵組件 | 1 | ||
| 27 | C3010731 | T40-06.00.48 | 螺旋槳喇叭口 | 1 | 91490-30025 | |
| 28 | C3070737 | T40-06.00.49 | 螺旋槳蓋板 | 1 | 66T-45997-00 | |
| 29 | C3070738 | T40-06.00.50 | 螺旋槳壓板 | 1 | 90386-22M01 | 90389?22M01 |
| 30 | C3020733 | T40-06.00.51 | 開槽六角螺母 | 1 | 90171-16011 | |
| 31 | C3050741 | T40-06.00.14 | 套管上密封圈 | 1 | 90480-30M71 | |
| 32 | C3020729 | T40-06.00.15 | 驅動軸套管 | 1 | 66T-44362-10 | |
| 33 | C3050742 | T40-06.00.16 | 套管下密封圈 | 1 | 90480-25M70 | |
| 34 | C4010232 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X30 | 4 | ||
| 35 | C3050735 | T40-06.00.01 | 水管下密封圈 | 1 | ||
| 36 | C3060734 | T40-06.00.02 | 水泵外殼 | 1 | 66T-44311-00 | |
| 37 | C3050736 | T40-06.00.04 | 水泵殼體O型圈 | 1 | 93210-59MG7 | |
| 38 | C3070730 | T40-06.00.05 | 水泵內殼 | 1 | 63D-44322-00 | |
| 39 | C3050737 | T40-06.01.00 | 水泵葉輪組件 | 1 | 6H4-44352-02 | |
| 40 | C3040717 | T40-06.00.06 | 水泵葉輪半圓鍵 | 1 | 90280-03M03 | |
| 41 | C3070731 | T40-06.00.08 | 水泵墊板 | 1 | 66T-44322-00 | |
| 42 | C3090724 | T40-06.00.07 | 水泵密封墊 | 1 | 63D-44316-00 | |
| 43 | C3020728 | T40-06.00.03 | 定位銷φ4*8 | 2 | ||
| 44 | C3050740 | T40-06.00.12 | 油封殼體O型圈 | 1 | 93210-48MG8 | |
| 45 | C3050738 | T40-06.00.09 | 油封殼體襯圈 | 1 | 66T-45344-01 | |
| 46 | C3010725 | T40-06.00.10 | 水泵油封殼體 | 1 | 63D-44341-00 | |
| 47 | C3050739 | T40-06.00.11 | 水泵油封22X36X7 | 2 | 93101-22M60 | |
| 48 | C3070732 | T40-06.00.13 | 油封殼體大墊圈 | 1 | 90201-27M00 | |
| 49 | C3040731 | T40-06.02.00-L | 驅動軸組件（長） | 1 | 66T-45501-01 | |
| 50 | C3070733 | T40-06.00.17 | 主動輪填隙片0.25 | 2 | 663-45587-01 | |
| 51 | C3060735 | T40-06.00.18 | 驅動軸尼龍護套 | 1 | 6H4-45536-00 | |
| 52 | C3040719 | T40-06.00.19 | 滾針軸承B-1416 | 1 | 93315-32224 | |
| 53 | C3040720 | T40-06.00.20 | 主動輪 | 1 | 66T-45551-00 | |
| 54 | C3040721 | T40-06.00.21 | 驅動軸螺母 | 1 | ||
| 55 | C4010404 | GB/T6170 | 六角螺母M6 | 1 | 97095-08025 | |
| 56 | C3050504 | T20-06.00.18 | 凸輪座O型圈 | 1 | 93210-06ME6 | |
| 57 | C3010728 | T40-06.00.26 | 變檔凸輪蓋 | 1 | 66T-45321-00 | |
| 58 | C3050744 | T40-06.00.27 | 凸輪蓋O型圈 | 1 | 93210-33MG4 | |
| 59 | C4010512 | GB/T97 | 平墊6 | 1 | 92990-06600 | |
| 60 | C3080722 | T40-06.03.00-L | 變檔凸輪組件（長） | 1 | 66T-44150-01 | |
| 61 | C3020503 | T20-02.00.13 | 定位銷φ6X12 | 2 | 93606-12019 | |
| 62 | C3050743 | T40-06.00.23 | 橡膠密封條 | 1 | ||
| 63 | C3010726 | T40-06.00.24 | 密封條壓板 | 1 | ||
| 64 | C4010412 | GB/T889 | 非金屬嵌件六角鎖緊螺母M5 | 1 | ||
| 65 | C3060737 | T40-06.00.29 | 進水口蓋B | 1 | 63D-45215-00 | |
| 66 | C4010233 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X35 | 1 | 97095-08035 | |
| 67 | C3040722 | T40-06.00.22 | 水下陽極 | 1 | 67C-45251-00 | |
| 68 | C4010138 | GB/T5787 | 六角法蘭面螺栓M10X40 | 4 | ||
| 69 | C3090535 | T20-06.00.43 | 注油口螺栓密封墊 | 2 | 90430-08020 | |
| 70 | C3020508 | T20-06.00.44 | 注油口螺栓 | 2 | 688-45341-10 | |
| 71 | C3060736 | T40-06.00.28 | 進水口蓋A | 1 | 63D-45214-00 | |
| 72 | C4010358 | GB/T820 | 十字槽半沉頭螺釘M5X30 | 1 | ||
| 73 | C4010239 | GB/T9074.14 | 六角頭螺栓和平墊圈組合件M8X65 | 1 | ||
